Model Parameters

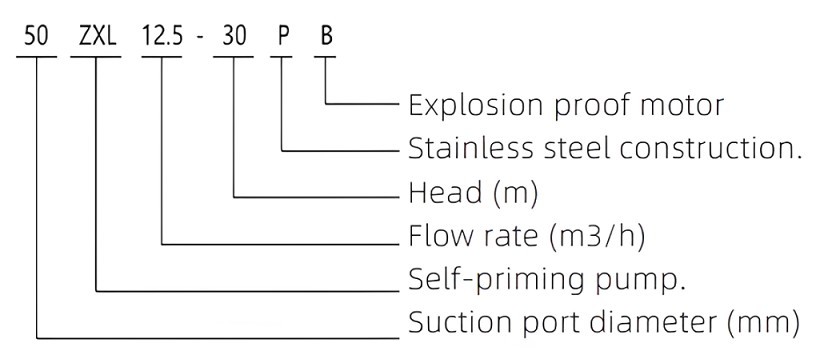

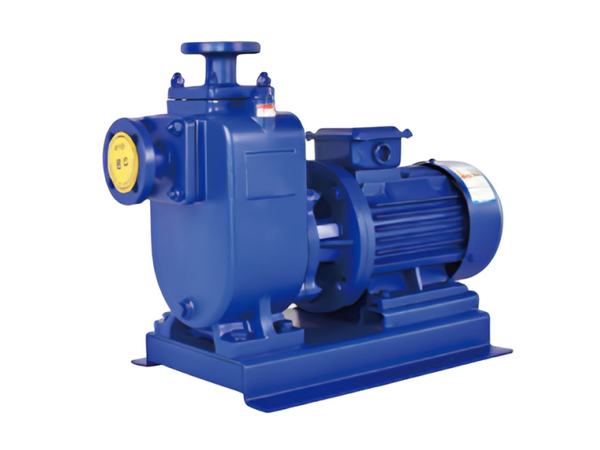

The ZXL direct-coupled self-priming pump is a novel product developed by our unit based on relevant technical data from both China and abroad, after thorough digestion, absorption, and improvement. It is a pioneering product in China. Its technical performance indicators are among the best in the country and have reached an international level of excellence, offering a wide range of applications and promising future development prospects.
Product Overview
| 1 | Electric Motor | Directly connected to the water pump to transmit power. High-quality motors are used. The CYZ-A-L pump employs high-quality explosion-proof motors. |
| 2 | Pump shaft | Coincident with the motor shaft. This extended shaft for the motor ensures concentricity, resulting in smooth operation, noise-free, and vibration-free performance of the pump. The use of chrome plating enhances its lifespan. |
| 3 | Water-resistant ring | Prevents the motor from getting waterlogged due to seal leaks. |
| 4 | Mechanical seals | Made from materials such as stainless steel, tungsten carbide, and fluororubber. Balanced high-temperature and high-pressure mechanical seals with a long operational lifespan, do not leak, do not cause wear on the shaft, do not accumulate water deposits, and ensure a clean working environment. |
| 5 | Pump cover | Connects the pump body to the motor. |
| 6 | The pump body | The discharge chamber, intake chamber, and gas-liquid separation chamber are designed using an advanced hydrodynamic model. They are both aesthetically pleasing and highly efficient, featuring installation feet for ease of installation and stable operation. |
| 7 | Impeller | Designed using an advanced hydrodynamic model, featuring high efficiency and reliability. |
| 8 | Sealing ring | Acts as a seal between the impeller of the water pump and the pump casing. |
| 9 | Bottom cover plate | When there is sediment or debris accumulating inside the pump, the bottom cover plate can be opened to clear away the dirt. |
| 10 | Water release valve | When the pump is not in use for an extended period, you can open the water release valve to drain the stored liquid. |
| 11 | Chassis | The entire pump is connected for easy installation, and vibration isolators can also be installed. |
| 12 | Exhaust adapter | Connects to the water outlet pipe. |
| 13 | Water addition valve | This valve can be opened to add water when the liquid in the pump’s chamber is insufficient. |
| 14 | Check valve | Prevents water from flowing back into a pipe when the pump is turned off. |
| 15 | Import adapter | Connects to an import pipeline. |
Primary uses
1. Compact design. This series of pumps features a horizontal design and combines the machine and pump into one unit. It has an attractive appearance and occupies minimal space. Compared to conventional self-priming pumps, it reduces the required space by 30%. If an IP54 outdoor motor is used, there is no need for a pump room, and the pump can be placed outdoors.
2. Smooth operation, low noise, and high degree of component alignment. The motor and pump are directly connected, simplifying the intermediate structure and enhancing the stability of operation. The impeller exhibits excellent dynamic and static stability, with no vibrations during operation, low noise levels, and an extended lifespan for the bearings, thereby improving the operating environment.
3. The shaft seal employs high-quality mechanical seals. The dynamic and static rings are made of tungsten carbide, which is wear-resistant, leak-proof, and has a long lifespan.
4. Utilizes advanced hydraulic models, featuring high efficiency and excellent performance.
5. Easy to install, use, and maintain. The discharge piping does not require a check valve, and the suction piping does not need a bottom valve. This simplifies the piping system and improves working conditions.
6. The structure is unique and features excellent self-suction capabilities. All that is required before commencing operation is to ensure that a predetermined amount of liquid is stored within the pump’s chamber.
Model Parameters
| Model Specifications | Import and export channels mm | Flow Rate m³/h | Head m | Power kw | Speed r/min | Self-priming Height |
| 25zx(L)3.2-20 | 25/25 | 3.2 | 20 | 1.1-2 | 2900 | 5 |
| 25zx(L)3.2-32 | 25/25 | 3.2 | 32 | 1.5-2 | 2900 | 5 |
| 32zx(L)3.2-20 | 32/32 | 3.2 | 20 | 1.1-2 | 2900 | 5 |
| 32zx(L)3.2-32 | 32/32 | 3.2 | 32 | 1.5-2 | 2900 | 5 |
| 32zx(L)3.2-50 | 32/32 | 3.2 | 50 | 3-2 | 2900 | 5 |
| 40zx(L)6.3-20 | 40/40 | 6.3 | 20 | 1.5-2 | 2900 | 5 |
| 40zx(L)6.3-32 | 40/40 | 6.3 | 32 | 2.2-2 | 2900 | 5 |
| 40zx(L)10-40 | 40/40 | 10 | 40 | 4-2 | 2900 | 5 |
| 40zx(L)6.3-50 | 40/40 | 6.3 | 50 | 4-2 | 2900 | 5 |
| 50zx(L)15-12 | 50/50 | 15 | 12 | 1.5-2 | 2900 | 5 |
| 50zx(L)18-20 | 50/50 | 18 | 20 | 2.2-2 | 2900 | 5 |
| 50zx(L)12.5-32 | 50/50 | 12.5 | 32 | 3-2 | 2900 | 5 |
| 50zx(L)20-30 | 50/50 | 20 | 30 | 4-2 | 2900 | 5 |
| 50zx(L)14-35 | 50/50 | 14 | 35 | 4-2 | 2900 | 5 |
| 50zx(L)10-40 | 50/50 | 10 | 40 | 4-2 | 2900 | 5 |
| 50zx(L)12.5-50 | 50/50 | 12.5 | 50 | 5.5-2 | 2900 | 5 |
| 50zx(L)15-60 | 50/50 | 15 | 60 | 7.5-2 | 2900 | 5 |
| 50zx(L)20-75 | 50/50 | 20 | 75 | 11-2 | 2900 | 5 |
| 65zx(L)30-15 | 65/65 | 30 | 15 | 3-2 | 2900 | 5 |
| 65zx(L)25-32 | 65/65 | 25 | 32 | 5.5-2 | 2900 | 5 |
| 65zx(L)25-50 | 65/65 | 25 | 50 | 7.5-2 | 2900 | 5 |
| 65zx(L)25-70 | 65/65 | 25 | 70 | 15-2 | 2900 | 5 |
| 80zx(L)35-13 | 80/80 | 35 | 13 | 3-2 | 2900 | 5 |
| 80zx(L)43-17 | 80/80 | 43 | 17 | 4-2 | 2900 | 5 |
| 80zx(L)50-20 | 80/80 | 50 | 20 | 5.5-2 | 2900 | 5 |
| 80zx(L)40-22 | 80/80 | 40 | 22 | 5.5-2 | 2900 | 5 |
| 80zx(L)50-32 | 80/80 | 50 | 32 | 7.5-2 | 2900 | 5 |
| 80zx(L)60-40 | 80/80 | 60 | 40 | 11-2 | 2900 | 5 |
| 80zx(L)60-50 | 80/80 | 60 | 50 | 15-2 | 2900 | 5 |
| 80zx(L)60-55 | 80/80 | 60 | 55 | 18.5-2 | 2900 | 5 |
| 80zx(L)60-70 | 80/80 | 60 | 70 | 22-2 | 2900 | 5 |
| 100zx(L)80-15 | 100/100 | 80 | 15 | 7.5-2 | 2900 | 5 |
| 100zx(L)100-20 | 100/100 | 100 | 20 | 11-2 | 2900 | 5 |
| 100zx(L)100-32 | 100/100 | 100 | 32 | 15-2 | 2900 | 5 |
| 100zx(L)100-40 | 100/100 | 100 | 40 | 18.5-2 | 2900 | 5 |
| 100zx(L)100-50 | 100/100 | 100 | 50 | 22-2 | 2900 | 5 |
| 100zx(L)100-65 | 100/100 | 100 | 65 | 30-2 | 2900 | 5 |
| 100zx(L)70-75 | 100/100 | 70 | 75 | 30-2 | 2900 | 5 |
| 150zx(L)150-20 | 150/150 | 150 | 20 | 18.5-2 | 2900 | 5 |
| 150zx(L)150-32 | 150/150 | 150 | 32 | 22-2 | 2900 | 5 |
| 150zx(L)150-40 | 150/150 | 150 | 40 | 37-2 | 2900 | 5 |
| 150zx(L)170-55 | 150/150 | 170 | 55 | 45-2 | 2900 | 5 |
| 150zx(L)170-65 | 150/150 | 170 | 65 | 55-2 | 2900 | 5 |
| 150zx(L)160-80 | 150/150 | 160 | 80 | 55-2 | 2900 | 5 |
| 150zx(L)200-32 | 150/150 | 200 | 32 | 30-4 | 1450 | 5 |
| 150zx(L)200-40 | 150/150 | 200 | 40 | 37-4 | 1450 | 5 |
| 150zx(L)200-45 | 150/150 | 200 | 45 | 45-4 | 1450 | 5 |
| 200zx(L)350-20 | 200/200 | 350 | 20 | 37-4 | 1450 | 5 |
| 200zx(L)350-25 | 200/200 | 350 | 25 | 45-4 | 1450 | 5 |
| 200zx(L)400-32 | 200/200 | 400 | 32 | 55-4 | 1450 | 5 |
| 200zx(L)350-40 | 200/200 | 350 | 40 | 55-4 | 1450 | 5 |
| 200zx(L)350-45 | 200/200 | 350 | 45 | 75-4 | 1450 | 5 |
| 200zx(L)280-63 | 200/200 | 280 | 63 | 90-4 | 1450 | 5 |
| 250zx(L)500-32 | 250/250 | 500 | 32 | 75-4 | 1450 | 5 |
| 250zx(L)400-50 | 250/250 | 400 | 50 | 90-4 | 1450 | 5 |
| 300zx(L)600-32 | 300/300 | 600 | 32 | 90-4 | 1450 | 5 |
| 300zx(L)500-50 | 300/300 | 500 | 50 | 110-4 | 1450 | 5 |
