Model Parameters

1. Export Diameter: 40NHCW, 50NHCW, 65NHCW

2. Horsepower: IHP 2HP 3HP 5HP 7.5HP 10HP

3. Rubber Material: E-EPDM V-VITON N-NBR

4. Pump body material: F-FRPP P-PVDF

5. FB – Optional explosion-proof motor.

Scope of Use

· Suitable for acidic, alkaline, degreasing solutions, chemical printed circuit boards, electroplating solutions.

Water and wastewater treatment.

The pumps are manufactured using FRPP and PVDF materials through injection molding. They are resistant to acids and bases and highly corrosion-resistant.

· Operating temperature: FRPP – below 75°C; PVDF – below 90°C.

· A dry shaft seal design is used to prevent acidic gases from entering the motor and damaging the bearings.

· It can be used as a standalone unit and will not be damaged due to continuous rotation.

· Can be used in liquids containing crystalline particles.

· Can be installed either outside or inside the trough.

· Equipped with smoke-proof sealing gaskets to safeguard the motor bearings and the surrounding environment.

· The fine filter mesh of the straw box can be extended.

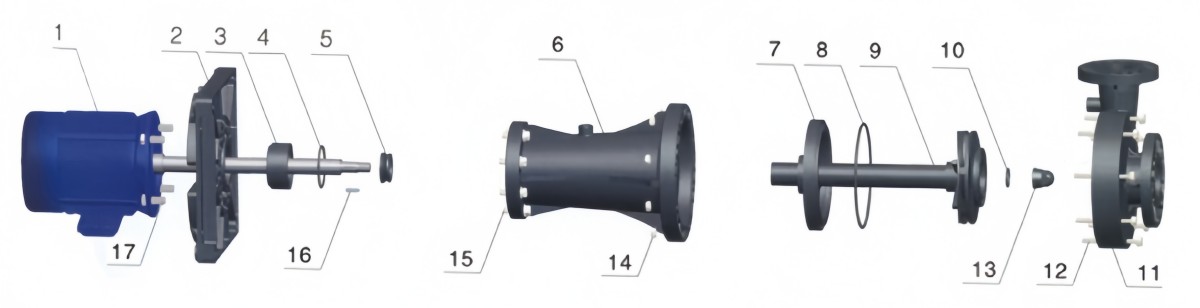

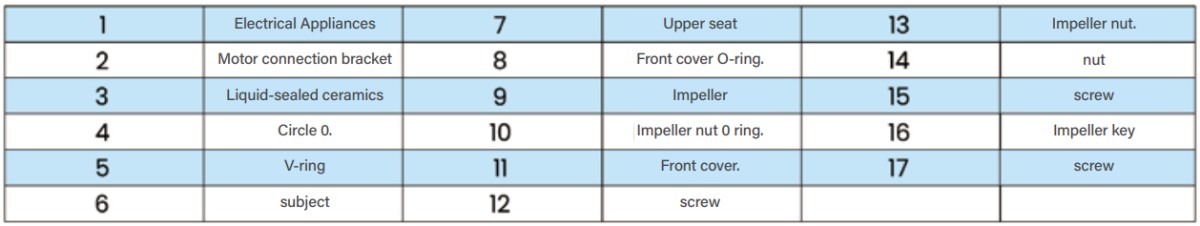

Disassembly and reassembly

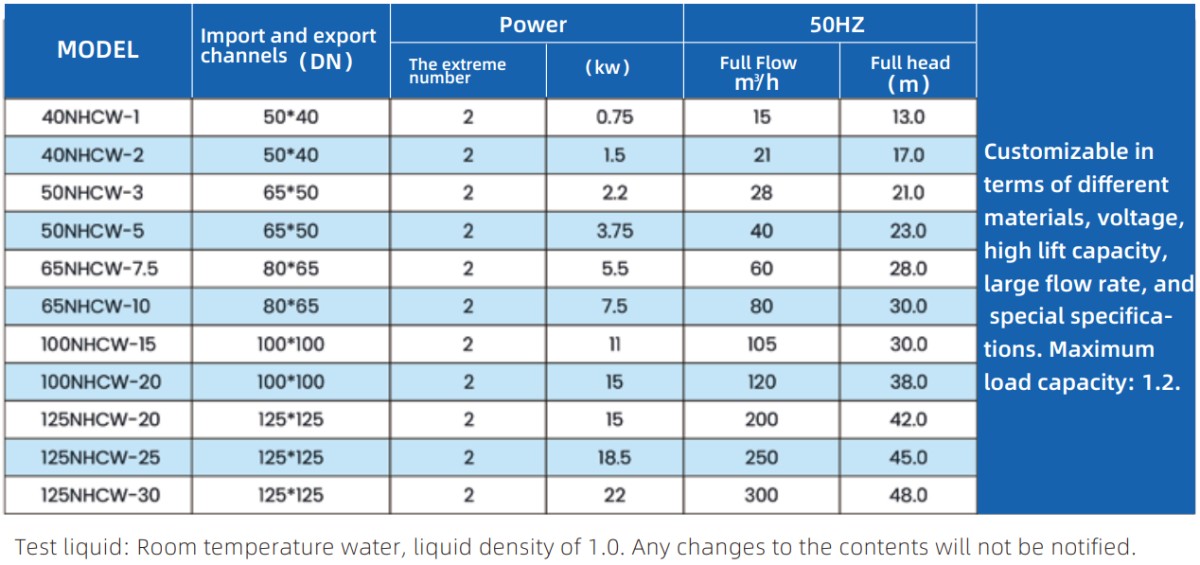

Model Parameters

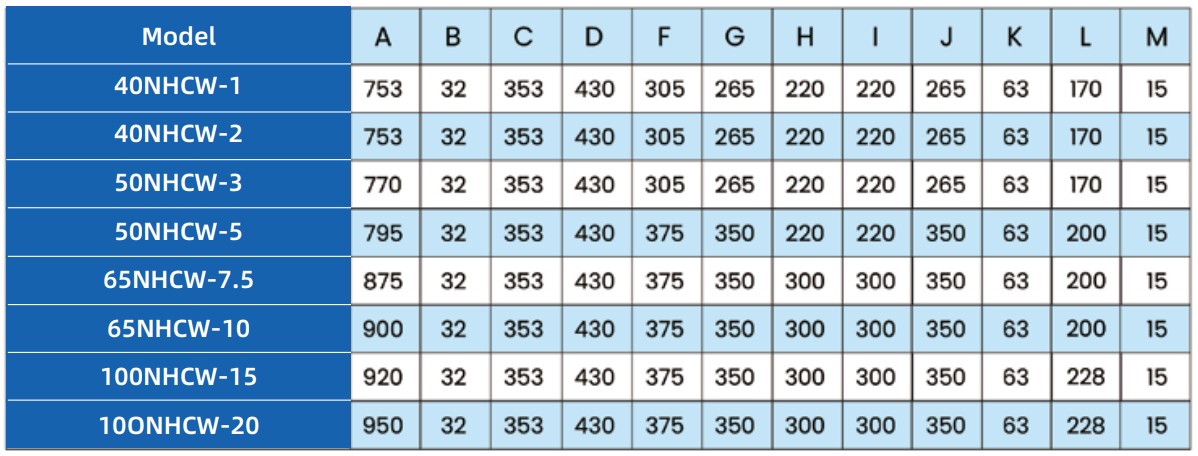

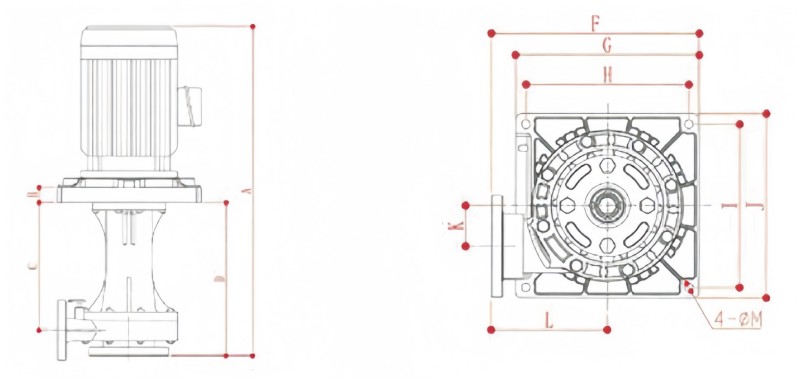

Installation dimensions
